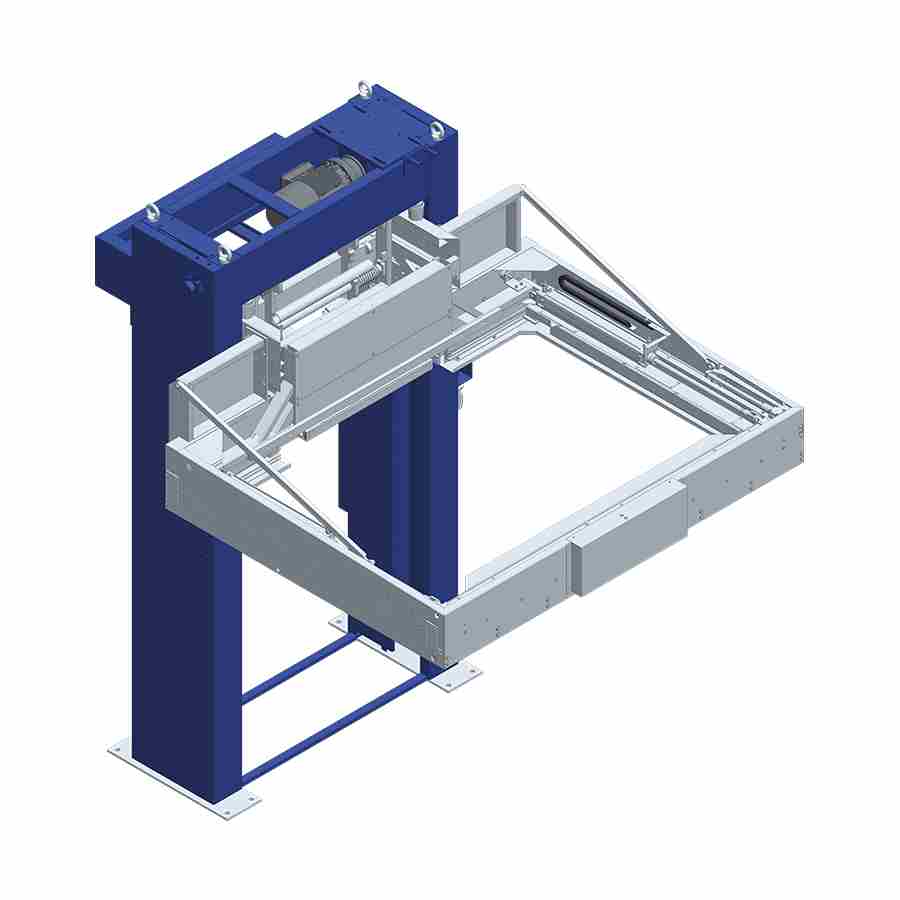

Automatic Horizontal Strapping Machine - Industry Specific


The 06C horizontal strapping machine allows the packaging of packs completely automatic. It is possible to undertake one or more strapping operations using polyester of heat-sealed polypropylene strap.

The machine consists of a sturdy structure made of electrowelded steel sections, which support all the component parts of the entire strapping machine:

  • Mod. TR  head (our international patent) which automatically undertakes the launch, recovery, tensioning, welding and cutting operations.
  • Channel for strap sliding around the pack made of special material with release device in multiple independent sections, to ensure that the strap is perfectly centered around the pack.
  • Head compensation device. This is possible through the cross deplacement of the whole welding head during the tensioning phase.  This assures the uniformity of the feeding on each side of the parcel.  The deplacement of the same is possible by means of bearings which slide on treated guides.
  • Strap feeder unit with roll-holders with cutting operation for removal of the same with anti-tear unwinding system and electromagnetic brake unit.
  • Electric panel for the complete automatic function of the machine, complete with controls for manual operations.
  • Pneumatic squaring-alignment device of the load fitted on the moving arch. This unit acts on the four sides of the package before each strapping with a strength of clamping adjusting till 300 kgs. The floating system allows the squaring and the strapping of loads not perfectly centered under the horizontal strapping area.
  • The entire plant is complete with all on board installations (electrical and pneumatic) and is completely painted.
